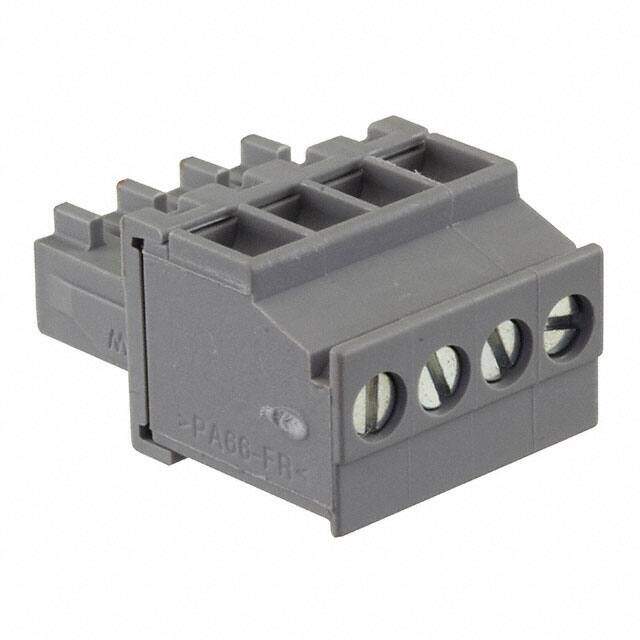

5437583 image
Favorite
5437583 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks BCVP-350R- 4
PDF
/
Inventory: 1262
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 14.8mm

Technical

Screw Size M2
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 90°
Safety Approval CUL; UL
Number of Ways 4
Torque - Screw 0.2-0.25 Nm (1.7-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Max Supply Voltage 160V
Voltage 300V
Termination Style Screw
Reach Compliance Code unknown
Insulation Height 0.752 19.10mm
Depth 19.1mm
Orientation Straight
Pitch 0.138 3.50mm
Number of Rows 1
Color Gray
Number of Positions 4
Type Plug, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series BCVP
Published 2015
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 4 Weeks
