5435365
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

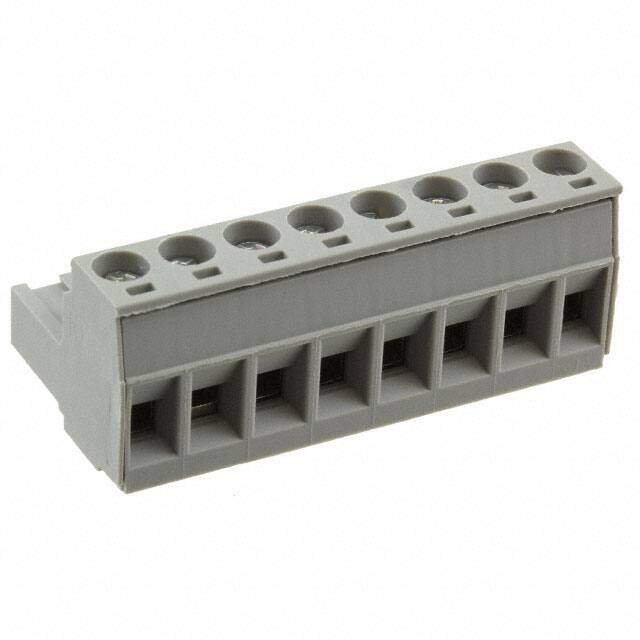

Pluggable Terminal Blocks BCP-500- 8
PDF
/
Inventory: 2767
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2015
Series BCP
Feature Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Type Plug, Female Sockets
Number of Positions 8
Color Gray
Number of Rows 1
Pitch 0.197 5.00mm
Orientation Right Angle
Depth 18.2mm
Insulation Height 0.591 15.00mm
Termination Style Screw
Voltage 300V
Max Supply Voltage 320V
Max Current Rating 12A
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 15A
Voltage - IEC 630V
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Positions Per Level 8
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Current - IEC 12A
Number of Positions Per Level 8
Screw Size M3
Dimensions
Length 40mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
