5435323
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

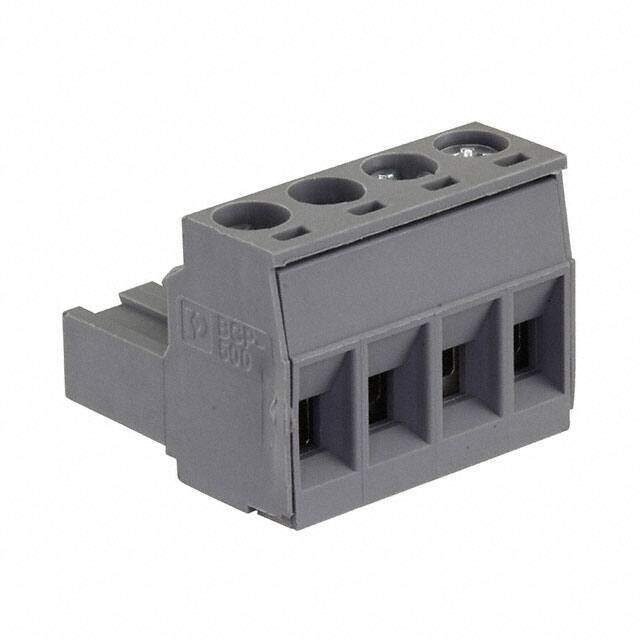

Pluggable Terminal Blocks BCP-500- 4
PDF
/
Inventory: 9901
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2014
Series BCP
Feature Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 4
Color Gray
Voltage - Rated 320V
Pitch 0.197 5.00mm
Insulation Height 0.591 15.00mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Screw
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Current - IEC 12A
Screw Size M3
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
