5434939
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

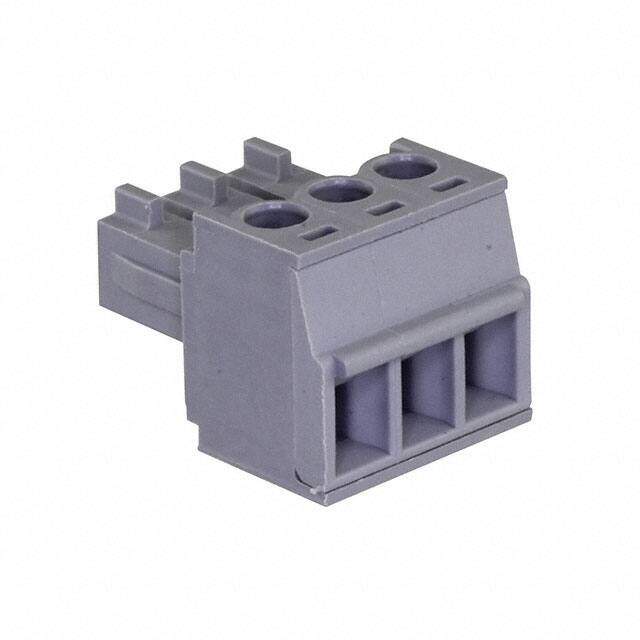

Pluggable Terminal Blocks BCP-381- 3
PDF
/
Buying Options
Total Price: USD $1.44
Unit Price: USD $1.4432
≥1 USD $1.4432
Inventory: 198
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2015
Series BCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 3
Color Gray
Voltage - Rated 160V
Pitch 0.150 3.81mm
Orientation Right Angle
Depth 16.1mm
Insulation Height 0.437 11.10mm
Reach Compliance Code not_compliant
Current Rating 8A
Termination Style Screw
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 14 AWG
Wire Gauge (Min) 30 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Dimensions
Length 11.82mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
