5434557
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

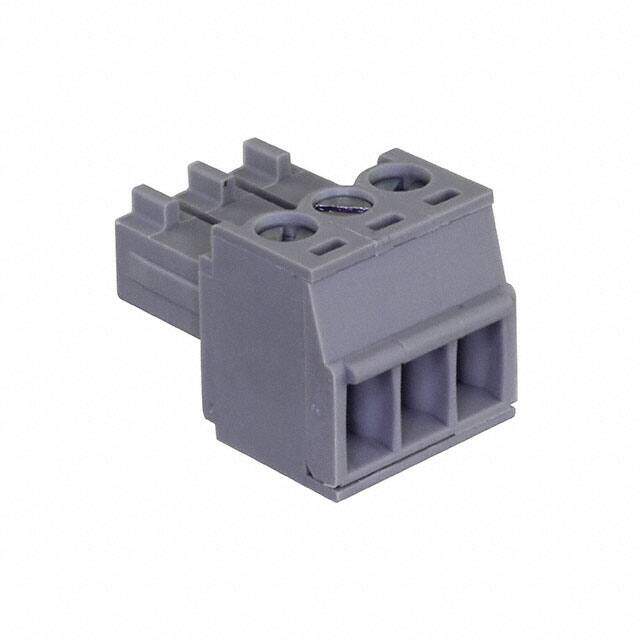

Pluggable Terminal Blocks BCP-350- 3
PDF
/
Buying Options
Total Price: USD $1.56
Unit Price: USD $1.5576
≥1 USD $1.5576
≥10 USD $1.48984
≥100 USD $1.449184
≥500 USD $1.35432
≥1000 USD $1.245974
≥3000 USD $1.222654
Inventory: 125
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2012
Series BCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 3
Color Gray
Number of Rows 1
Voltage - Rated 160V
Additional Feature PA, UL 94V-0
Pitch 0.138 3.50mm
Insulation Height 0.437 11.10mm
Current Rating 8A
Termination Style Screw
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.2-0.25 Nm (1.7-2.2 Lb-In)
Number of Ways 3
Safety Approval CUL; UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
