5434353
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

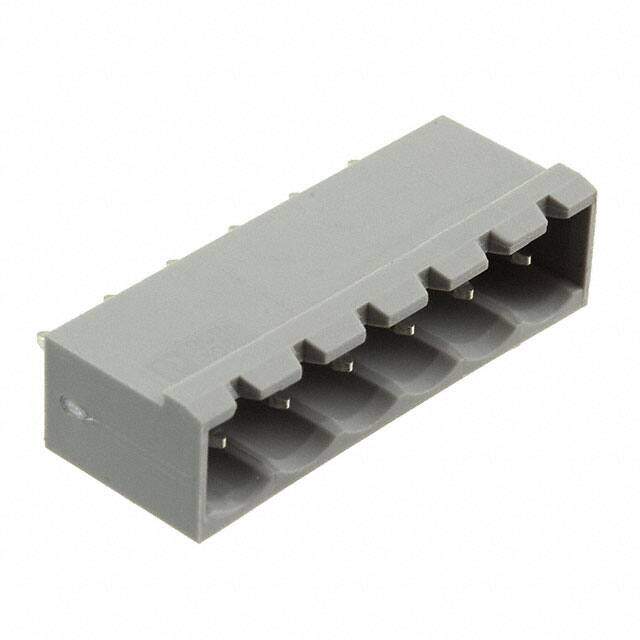

Pluggable Terminal Blocks BCH-508VS- 6
PDF
/
Buying Options
Total Price: USD $0.63
Unit Price: USD $0.6336
≥1 USD $0.6336
Inventory: 133
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method CONNECTOR
Current - IEC 12A
Header Orientation Vertical
Safety Approval CUL; UL
Number of Ways 6
Voltage - IEC 400V
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Reach Compliance Code unknown
Insulation Height 0.472 12.00mm
Pitch 0.200 5.08mm
Additional Feature PA, UL 94V-0
Number of Rows 1
Color Gray
Number of Positions 6
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series BCH
Published 2015
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
