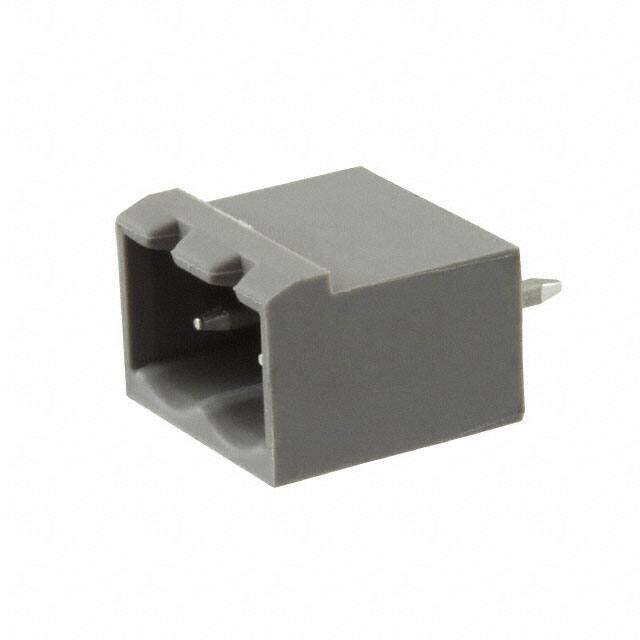

5434311
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks BCH-508VS- 2
PDF
/
Buying Options
Total Price: USD $0.25
Unit Price: USD $0.2464
≥1 USD $0.2464
≥10 USD $0.23496
≥100 USD $0.2288
≥500 USD $0.21384
≥1000 USD $0.196733
≥3000 USD $0.193054
Inventory: 71
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2013
Series BCH
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Gray
Number of Rows 1
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Orientation Straight
Insulation Height 0.472 12.00mm
Termination Style Solder
Housing Color Grey
Voltage 300V
Contact Tail Length 0.154 3.90mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 2
Safety Approval CUL; UL
Header Orientation Vertical
Current - IEC 12A
Number of Positions Per Level 2
Fastening Method CONNECTOR
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
