5432737
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

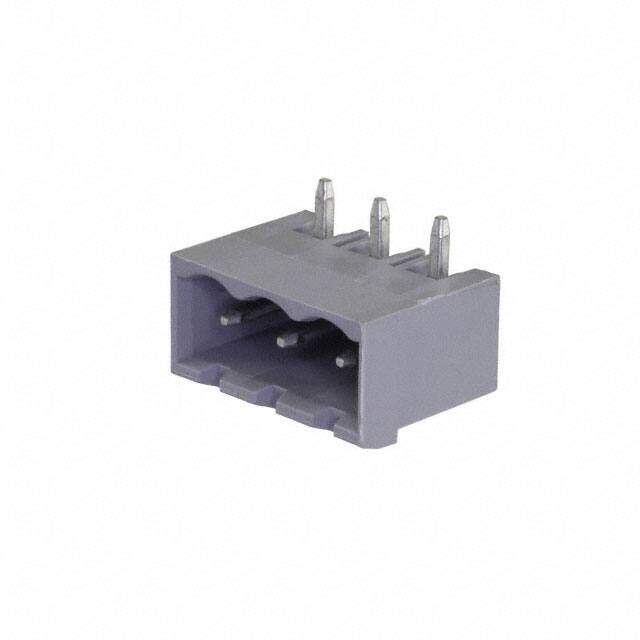

Pluggable Terminal Blocks BCH-500HS- 3
PDF
/
Buying Options
Total Price: USD $0.34
Unit Price: USD $0.3432
≥1 USD $0.3432
Inventory: 209
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2013
Series BCH
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Gray
Number of Rows 1
Additional Feature STANDARD: UL 94V-0, PA
Pitch 0.197 5.00mm
Orientation Right Angle
Insulation Height 0.339 8.61mm
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 3
Safety Approval CUL; UL
Header Orientation 90┬?, Right Angle
Current - IEC 12A
Number of Positions Per Level 3
Fastening Method CONNECTOR
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
