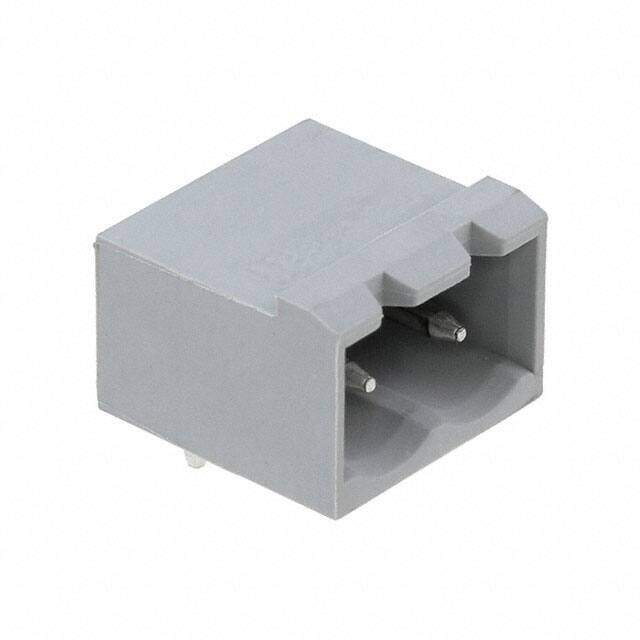

5432630
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks BCH-500HS- 2
PDF
/
Buying Options
Total Price: USD $0.8
Unit Price: USD $0.804287
≥1 USD $0.804287
≥10 USD $0.758766
≥100 USD $0.715819
≥500 USD $0.675294
≥1000 USD $0.637068
Inventory: 3469
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2015
Series BCH
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Color Gray
Number of Rows 1
Additional Feature STANDARD: UL 94V-0, PA
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Reach Compliance Code unknown
Termination Style Solder
Housing Color Grey
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 2
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 12A
Fastening Method CONNECTOR
Dimensions
Length 12mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
