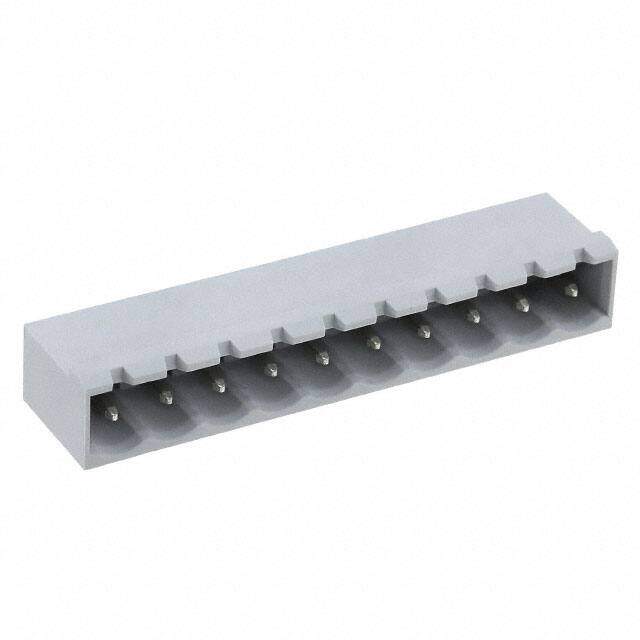

5432449 image
Favorite
5432449 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks BCH-500HS-10
PDF
/
Buying Options
Total Price: USD $1.38
Unit Price: USD $1.3816
≥1 USD $1.3816
≥10 USD $1.3244
≥100 USD $1.288144
≥500 USD $1.20384
≥1000 USD $1.107533
≥3000 USD $1.0868
Inventory: 315
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon

Technical

Packaging Bulk
Published 2015
Series BCH
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 10
Color Gray
Number of Rows 1
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Termination Style Solder
Housing Color Grey
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 10
Safety Approval CUL; UL
Header Orientation 90°, Right Angle
Current - IEC 12A

Dimensions

Length 52mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
