5430836
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

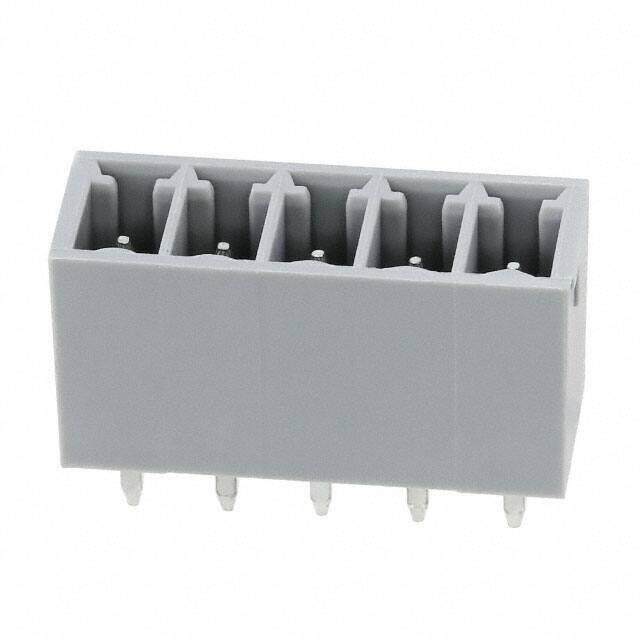

Pluggable Terminal Blocks BCH-350V- 5
PDF
/
Buying Options
Total Price: USD $2.13
Unit Price: USD $2.13269
≥1 USD $2.13269
≥10 USD $2.011977
≥100 USD $1.898082
≥500 USD $1.790643
≥1000 USD $1.689296
Inventory: 1086
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2015
Series BCH
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 5
Color Gray
Number of Rows 1
Additional Feature STANDARD: UL 94V-0, PA
Pitch 0.138 3.50mm
Insulation Height 0.362 9.20mm
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 320V
Number of Ways 5
Safety Approval CB; CUL; IEC; UL; VDE
Header Orientation Vertical
Fastening Method CONNECTOR
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
