5430807
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

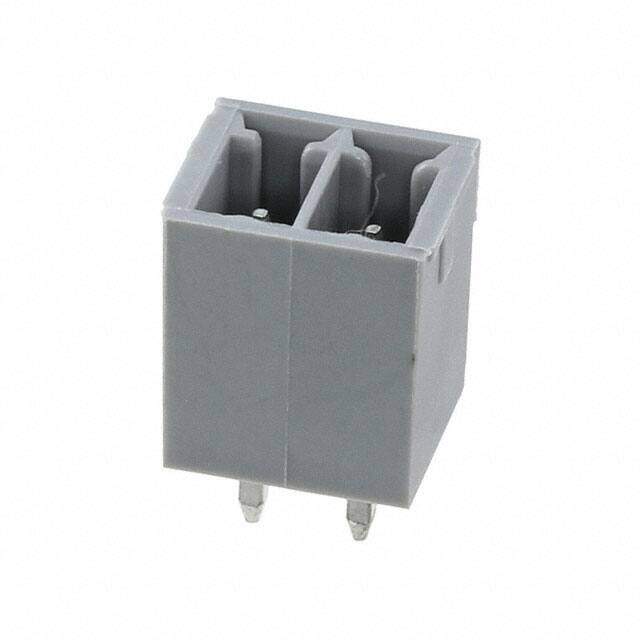

Pluggable Terminal Blocks BCH-350V- 2
PDF
/
Buying Options
Total Price: USD $0.36
Unit Price: USD $0.3608
≥1 USD $0.3608
≥10 USD $0.34848
≥100 USD $0.338976
≥500 USD $0.3168
≥1000 USD $0.291456
≥3000 USD $0.28651
Inventory: 87
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2015
Series BCH
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Color Gray
Number of Rows 1
Voltage - Rated 160V
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.362 9.20mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 320V
Number of Ways 2
Safety Approval CUL; UL
Header Orientation Vertical
Fastening Method CONNECTOR
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
