5430441
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

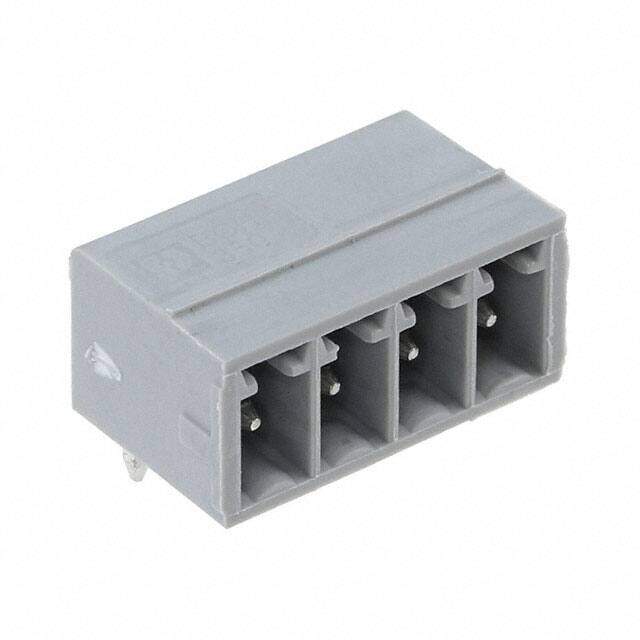

Pluggable Terminal Blocks BCH-350H- 4
PDF
/
Buying Options
Total Price: USD $0.32
Unit Price: USD $0.323898
≥1 USD $0.323898
≥10 USD $0.305562
≥100 USD $0.288267
≥500 USD $0.271947
≥1000 USD $0.256555
Inventory: 6657
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2012
Series BCH
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Color Gray
Number of Rows 1
Voltage - Rated 160V
Pitch 0.138 3.50mm
Insulation Height 0.291 7.40mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 320V
Number of Ways 4
Safety Approval CB; CUL; EAC; UL; VDE
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
