5430438
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

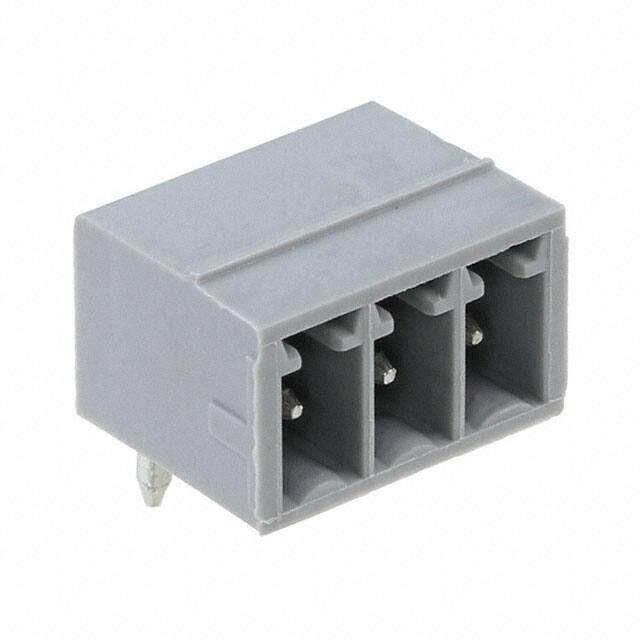

Pluggable Terminal Blocks BCH-350H- 3
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5544
≥1 USD $0.5544
≥10 USD $0.53152
≥100 USD $0.516912
≥500 USD $0.48312
≥1000 USD $0.44447
≥3000 USD $0.436146
Inventory: 166
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 3
Header Orientation 90°, Right Angle
Safety Approval CUL; UL
Number of Ways 3
Voltage - IEC 320V
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Insulation Height 0.291 7.40mm
Pitch 0.138 3.50mm
Additional Feature PA, UL 94V-0
Gender Male
Number of Rows 1
Color Gray
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series BCH
Published 2015
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
