3240166
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

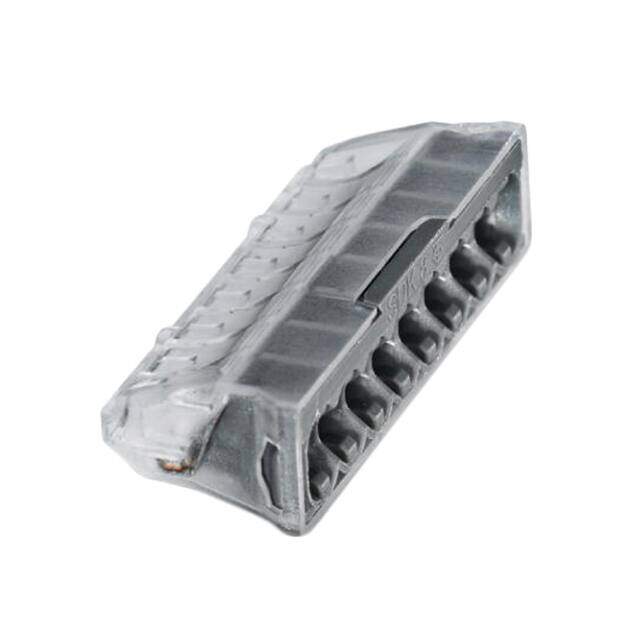

Fixed Terminal Blocks JBC 2,5/8
PDF
/
Buying Options
Total Price: USD $0.58
Unit Price: USD $0.583144
≥1 USD $0.583144
≥10 USD $0.550133
≥100 USD $0.519
≥500 USD $0.489621
≥1000 USD $0.461904
Inventory: 7177
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Technical
Packaging Bulk
Published 2011
Series JBC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 8
Color Transparent
Voltage - Rated 450V
Insulation Height 0.350 8.89mm
Current - IEC 24A
Wire Strip Length 8mm
Wire Gauge or Range - mm2 0.5-2.5mm2
Plug Wire Entry 180°
Voltage - IEC 450V
Wire Gauge or Range - AWG 16-20 AWG
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 20 AWG
Current 20A
Number of Levels 1
Voltage 600V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 24A
Compliance
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-2
Dimensions
Width 39.2mm
Length 15.6mm
Height 8.9mm
