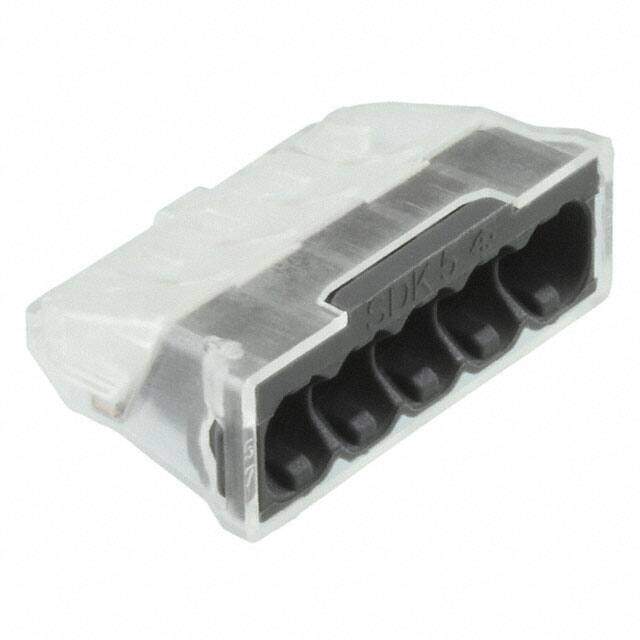

3240165
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Fixed Terminal Blocks JBC 2,5/5
PDF
/
Buying Options
Total Price: USD $0.22
Unit Price: USD $0.221088
≥1 USD $0.221088
≥10 USD $0.208574
≥100 USD $0.19677
≥500 USD $0.185627
≥1000 USD $0.17512
Inventory: 5873
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Technical
Packaging Bulk
Published 2011
Series JBC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 5
Color Transparent
Voltage - Rated 450V
Insulation Height 0.350 8.89mm
Current Rating 24A
Termination Style Screwless - Spring Cage, Tension Clamp
Number of Contacts 5
Voltage 600V
Max Current Rating 24A
Number of Levels 1
Current 20A
Wire Gauge (Max) 14 AWG
Wire Gauge (Min) 20 AWG
Wire Gauge or Range - AWG 16-20 AWG
Voltage - IEC 450V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-2.5mm2
Wire Strip Length 8mm
Dimensions
Height 8.9mm
Length 15.6mm
Width 26mm
Compliance
Material Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
