3240164
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

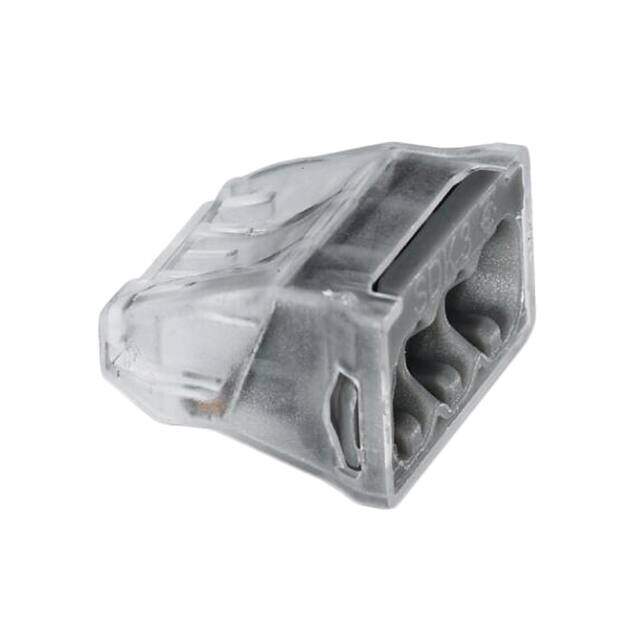

Fixed Terminal Blocks JBC 2,5/3
PDF
/
Buying Options
Total Price: USD $0.17
Unit Price: USD $0.172494
≥1 USD $0.172494
≥10 USD $0.162731
≥100 USD $0.153519
≥500 USD $0.144825
≥1000 USD $0.13663
Inventory: 1141
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-2
Dimensions
Width 17.2mm
Length 15.6mm
Height 8.9mm
Technical
Current - IEC 24A
Wire Strip Length 8mm
Wire Gauge or Range - mm2 0.5-2.5mm2
Plug Wire Entry 180°
Voltage - IEC 450V
Wire Gauge or Range - AWG 16-20 AWG
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 20 AWG
Current 20A
Number of Levels 1
Voltage 600V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 24A
Insulation Height 0.350 8.89mm
Voltage - Rated 450V
Color Transparent
Number of Positions 3
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series JBC
Published 2011
Packaging Bulk
Physical
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 7 Weeks
