3213468
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

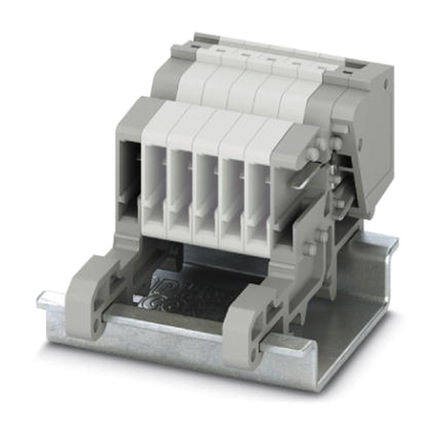

CLIPLINE COMBI PPC RoHS Compliant 2015 Rail Mount Foot Terminal Block Receptacle, Female Sockets UL94V-0 26AWG 180° 17.5A
PDF
/
Buying Options
Total Price: USD $10.1
Unit Price: USD $10.099964
≥1 USD $10.099964
≥10 USD $9.528263
≥100 USD $8.988929
≥500 USD $8.480116
≥1000 USD $8.000111
Inventory: 1153
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Material Polyamide
Technical
Packaging Bulk
Published 2015
Series CLIPLINE COMBI PPC
Feature Rail Mount Foot
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Receptacle, Female Sockets
Number of Positions 10
Color Gray
Voltage - Rated 500V
Pitch 0.138 3.50mm
Current Rating 17.5A
Termination Style Screwless - Leg Spring, Push-In Spring
Number of Levels 1
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge or Range - AWG 14-26 AWG
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
