3212675
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

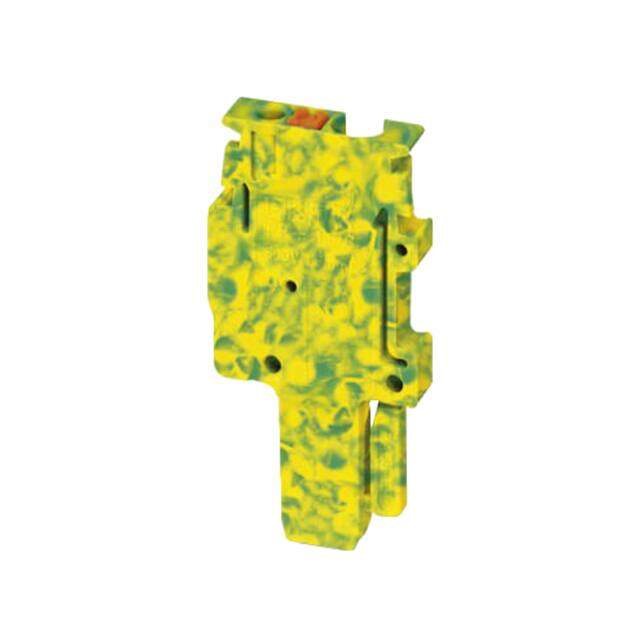

DIN Rail Terminal Blocks PP-H 1,5/S/1-L GNYE
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.2144
≥1 USD $1.2144
Inventory: 114
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 3.5mm
Technical
Current - IEC 17.5A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval BV; CB; CSA; CUL; EAC; GL; LR
Number of Ways 1
Voltage - IEC 500V
Wire Gauge or Range - AWG 14-26 AWG
Number of Decks 1
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 26 AWG
Current 5A
Number of Levels 1
Voltage 600V
Termination Style Screwless - Push-In Spring
Current Rating 17.5A
Insulation Height 1.232 31.30mm
Pitch 1.5mm
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL: NK; UL; VDE
Voltage - Rated 500V
Number of Rows 1
Color Green, Yellow
Min Operating Temperature -60°C
Max Operating Temperature 130°C
Type Plug, Female Sockets
Connector Type Push-In
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Interlocking (Side)
Series CLIPLINE COMBI PP-H
Published 2012
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
