3212633
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

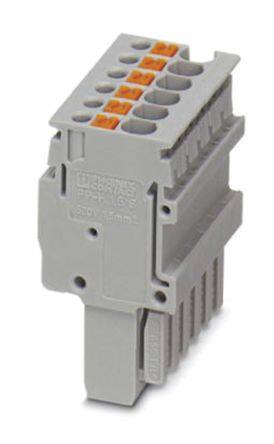

DIN Rail Terminal Blocks PP-H 1,5/S/14
PDF
/
Buying Options
Total Price: USD $16.53
Unit Price: USD $16.5264
≥1 USD $16.5264
≥10 USD $16.07584
≥100 USD $15.02424
≥500 USD $13.822336
≥1000 USD $12.770595
≥3000 USD $12.169678
Inventory: 135
Minimum: 1
-
+
Technical Details
Technical
Connector Type Push-In
Type Plug, Female Sockets
Number of Positions 14
Color Gray
Voltage - Rated 500V
Pitch 1.5mm
Insulation Height 1.232 31.30mm
Current Rating 17.5A
Termination Style Screwless - Push-In Spring
Voltage 600V
Number of Levels 1
Current 5A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge or Range - AWG 14-26 AWG
Voltage - IEC 500V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 10mm
Current - IEC 17.5A
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series CLIPLINE COMBI PP-H
Published 2012
Packaging Bulk
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
