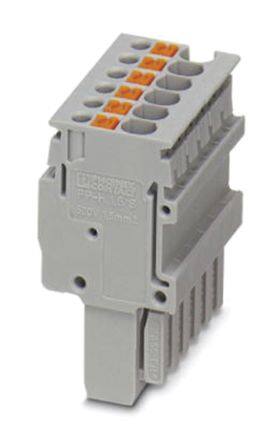

3212620 image
Favorite
3212620 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description DIN Rail Terminal Blocks PP-H 1,5/S/13
PDF
/
Buying Options
Total Price: USD $15.19
Unit Price: USD $15.185863
≥1 USD $15.185863
≥10 USD $14.326287
≥100 USD $13.515363
≥500 USD $12.750341
≥1000 USD $12.028627
Inventory: 6807
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Current - IEC 17.5A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Voltage - IEC 500V
Wire Gauge or Range - AWG 14-26 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 26 AWG
Current 5A
Number of Levels 1
Voltage 600V
Termination Style Screwless - Push-In Spring
Current Rating 17.5A
Insulation Height 1.232 31.30mm
Pitch 1.5mm
Voltage - Rated 500V
Color Gray
Number of Positions 13
Type Plug, Female Sockets
Connector Type Push-In
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series CLIPLINE COMBI PP-H
Published 2012
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 4 Weeks
