3211971
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

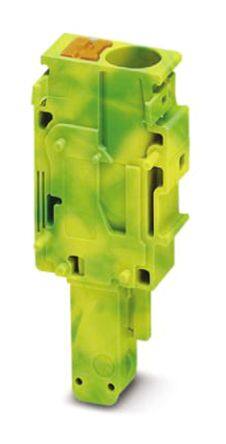

Phoenix Contact Terminal Plug, 1 Way/Pole, Push In Terminals, 0.26 mm, Polyamide, 800 V
PDF
/
Buying Options
Total Price: USD $2.84
Unit Price: USD $2.840389
≥1 USD $2.840389
≥10 USD $2.679616
≥100 USD $2.52794
≥500 USD $2.384843
≥1000 USD $2.249861
Inventory: 5394
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Current - IEC 32A
Wire Gauge or Range - mm2 0.2-6mm2
Plug Wire Entry 90°
Voltage - IEC 800V
Wire Gauge or Range - AWG 10-24 AWG
Wire Gauge (Min) 10 AWG
Wire Gauge (Max) 24 AWG
Current 28A
Number of Levels 1
Voltage 600V
Termination Style Screwless - Push-In Spring
Current Rating 32A
Voltage - Rated 800V
Color Green, Yellow
Type Plug, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series CLIPLINE COMBI PP-H
Published 2015
Packaging Bulk
Physical
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
