3210729
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

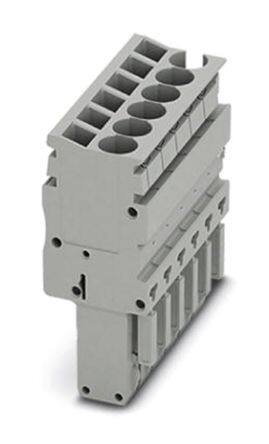

Plug SP-H 2,5/12 3210729 Phoenix Contact
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 5.2mm
Technical
Current - IEC 24A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.08-4mm2
Plug Wire Entry 180°
Voltage - IEC 500V
Wire Gauge or Range - AWG 12-26 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 28 AWG
Current 20A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 24A
Insulation Height 1.535 39.00mm
Voltage - Rated 500V
Color Gray
Number of Positions 12
Type Plug, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series CLIPLINE COMBI SP-H
Published 2011
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 6 Weeks
