3210677
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

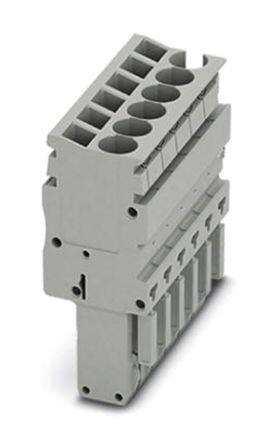

Plug SP-H 2,5/ 7 3210677 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $23.71
Unit Price: USD $23.7136
≥1 USD $23.7136
≥200 USD $9.46207
≥500 USD $9.145661
≥1000 USD $8.989426
Inventory: 1165
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2010
Series CLIPLINE COMBI SP-H
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Female Sockets
Number of Positions 7
Color Gray
Voltage - Rated 6kV
Insulation Height 1.535 39.00mm
Current Rating 24A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 300V
Number of Levels 1
Current 20A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 500V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.08-4mm2
Wire Strip Length 10mm
Current - IEC 24A
Dimensions
Width 5.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
