3210143
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

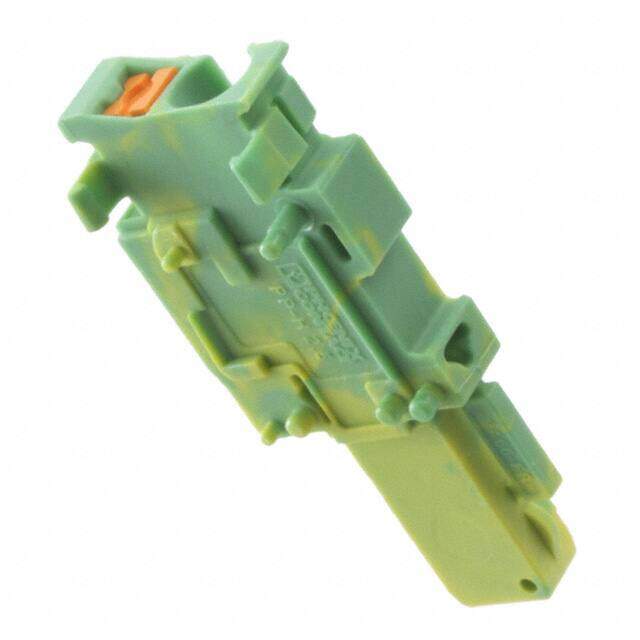

DIN Rail Terminal Blocks PP-H 2,5/1-R GNYE
PDF
/
Buying Options
Total Price: USD $1.71
Unit Price: USD $1.7072
≥1 USD $1.7072
≥10 USD $1.66056
≥100 USD $1.55232
≥500 USD $1.428152
≥1000 USD $1.319472
≥3000 USD $1.257379
Inventory: 56
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Series CLIPLINE COMBI PP-H
Feature Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Push-In
Type Plug, Female Sockets
Color Green, Yellow
Number of Rows 1
Voltage - Rated 500V
Additional Feature STANDARD: UL 94V-0, PA
HTS Code 8536.69.40.40
Insulation Height 1.535 39.00mm
Current Rating 24A
Termination Style Screwless - Push-In Spring
Voltage 300V
Number of Levels 1
Current 20A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 500V
Number of Ways 1
Safety Approval ABS; BV; CUL; GL; RS; UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-4mm2
Wire Strip Length 10mm
Current - IEC 24A
Wire Cross Section 4 mm2
Dimensions
Height 39mm
Length 15.8mm
Width 5.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
