3210130
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

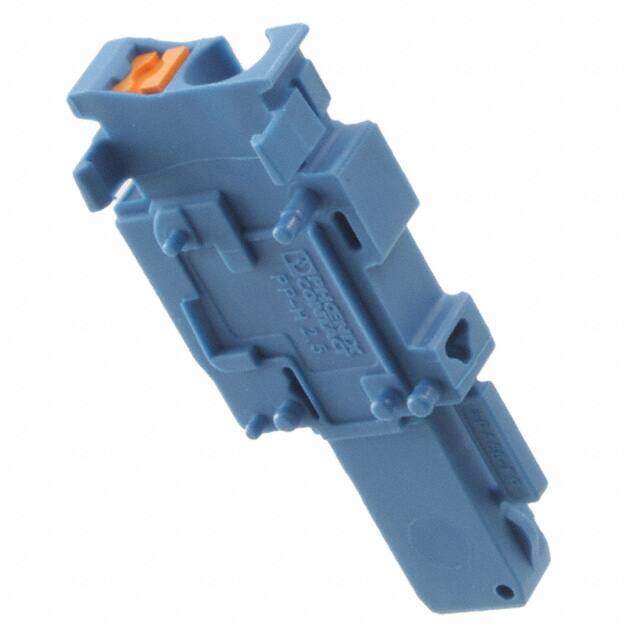

Phoenix Contact Combi Plug, PP-H series , 0.144mm, 500 V, 24A, Push In Termination, Blue, Single Level
PDF
/
Buying Options
Total Price: USD $1.71
Unit Price: USD $1.7072
≥1 USD $1.7072
≥10 USD $1.66056
≥100 USD $1.55232
≥500 USD $1.428152
≥1000 USD $1.319472
≥3000 USD $1.257379
Inventory: 96
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 5.2mm
Length 15.8mm
Height 39mm
Technical
Wire Cross Section 4 mm2
Current - IEC 24A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.14-4mm2
Plug Wire Entry 180°
Safety Approval ABS; BV; CSA; CUL; GL; RS; UL
Number of Ways 1
Voltage - IEC 500V
Wire Gauge or Range - AWG 12-26 AWG
Number of Decks 1
Wire/Cable Gauge 12 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 12 AWG
Current 20A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Push-In Spring
Current Rating 24A
Insulation Height 1.535 39.00mm
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0, PA
Voltage - Rated 500V
Number of Rows 1
Color Blue
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Interlocking (Side)
Series CLIPLINE COMBI PP-H
Published 2017
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
