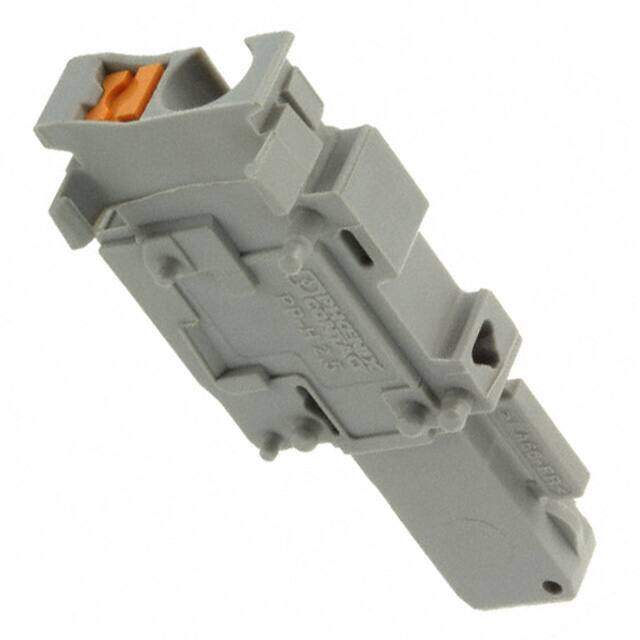

3210091 image
Favorite
3210091 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description DIN Rail Terminal Blocks PP-H 2,5/1-M
PDF
/
Buying Options
Total Price: USD $2.13
Unit Price: USD $2.128469
≥1 USD $2.128469
≥10 USD $2.007988
≥100 USD $1.89433
≥500 USD $1.787099
≥1000 USD $1.685943
Inventory: 1726
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon

Technical

Packaging Bulk
Published 2011
Series CLIPLINE COMBI PP-H
Feature Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Color Gray
Number of Rows 1
Voltage - Rated 6kV
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL: RS; UL
HTS Code 8536.69.40.40
Insulation Height 1.535 39.00mm
Current Rating 24A
Termination Style Screwless - Push-In Spring
Voltage 300V
Number of Levels 1
Current 20A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 500V
Number of Ways 1
Safety Approval ABS; BV; CSA; CUL; GL; LR; NK
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-4mm2
Wire Strip Length 10mm
Current - IEC 24A
Wire Cross Section 4 mm2

Dimensions

Height 39mm
Length 15.8mm
Width 5.2mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
