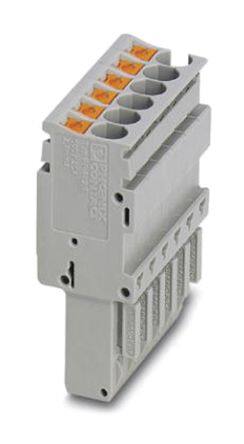

3210004
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
DIN Rail Terminal Blocks PP-H 2,5/15
PDF
/
Buying Options
Total Price: USD $16.5
Unit Price: USD $16.5
≥1 USD $16.5
≥10 USD $15.42024
≥100 USD $14.186656
≥500 USD $13.107248
≥1000 USD $12.490438
≥3000 USD $11.779346
Inventory: 44
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 78mm
Height 39mm
Technical
Current - IEC 24A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.14-4mm2
Plug Wire Entry 180°
Voltage - IEC 500V
Wire Gauge or Range - AWG 12-26 AWG
Wire/Cable Gauge 12 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 26 AWG
Current 20A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Push-In Spring
Current Rating 24A
Insulation Height 1.535 39.00mm
HTS Code 8536.69.40.40
Voltage - Rated 500V
Color Gray
Number of Positions 15
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series CLIPLINE COMBI PP-H
Published 2015
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
