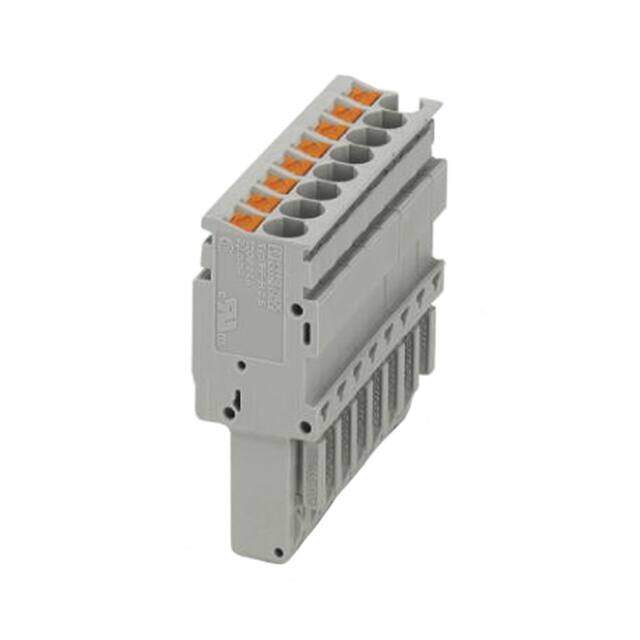

3209934 image
Favorite
3209934 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description DIN Rail Terminal Blocks PP-H 2,5/ 8
PDF
/
Buying Options
Total Price: USD $7.04
Unit Price: USD $7.04
≥1 USD $7.04
Inventory: 64
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon

Technical

Packaging Bulk
Published 2012
Series CLIPLINE COMBI PP-H
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 8
Color Gray
Voltage - Rated 500V
Insulation Height 1.535 39.00mm
Current Rating 24A
Termination Style Screwless - Push-In Spring
Voltage 300V
Number of Levels 1
Current 20A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 12 AWG
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 500V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-4mm2
Wire Strip Length 10mm
Current - IEC 24A

Dimensions

Width 5.2mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
