3209918
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

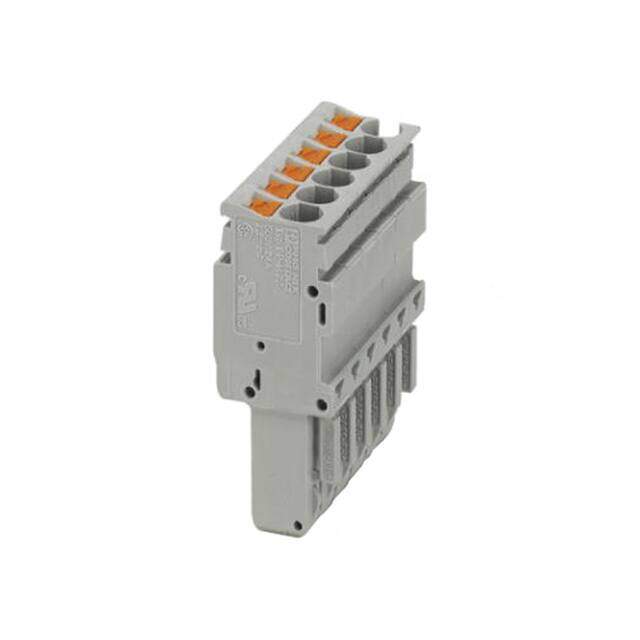

DIN Rail Terminal Blocks PP-H 2,5/ 6
PDF
/
Buying Options
Total Price: USD $7.27
Unit Price: USD $7.2688
≥1 USD $7.2688
≥10 USD $7.06728
≥100 USD $6.60528
≥500 USD $6.07684
≥1000 USD $5.614506
≥3000 USD $5.350294
Inventory: 111
Minimum: 1
-
+
Technical Details
Technical
Voltage 300V
Number of Levels 1
Current 20A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 12 AWG
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 500V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-4mm2
Wire Strip Length 10mm
Current - IEC 24A
Termination Style Screwless - Push-In Spring
Current Rating 24A
Insulation Height 1.535 39.00mm
Voltage - Rated 500V
Color Gray
Number of Positions 6
Type Plug, Female Sockets
Connector Type Push-In
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series CLIPLINE COMBI PP-H
Published 2012
Packaging Bulk
Dimensions
Height 39mm
Length 15.8mm
Width 31.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
