3209879
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

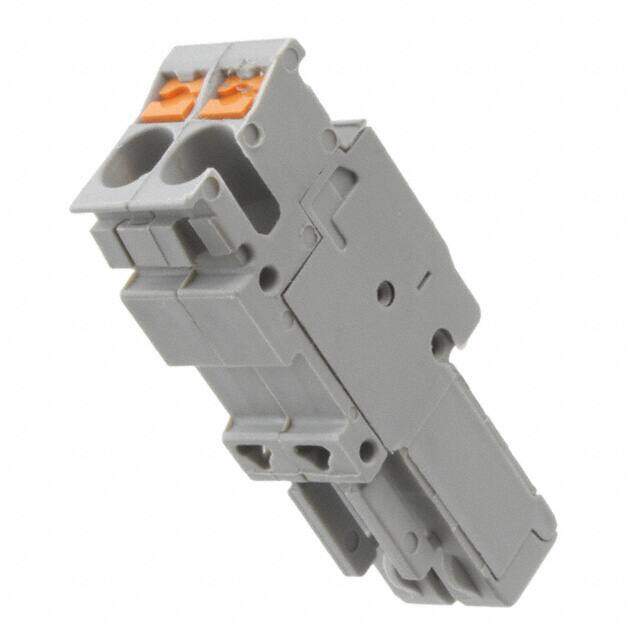

DIN Rail Terminal Blocks PP-H 2,5/ 2
PDF
/
Buying Options
Total Price: USD $2.95
Unit Price: USD $2.948
≥1 USD $2.948
≥10 USD $2.8644
≥100 USD $2.67696
≥500 USD $2.462856
≥1000 USD $2.275434
≥3000 USD $2.168355
Inventory: 1586
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 10.4mm
Length 15.8mm
Height 39mm
Technical
Current - IEC 24A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.14-4mm2
Plug Wire Entry 180°
Voltage - IEC 500V
Wire Gauge or Range - AWG 12-26 AWG
Wire/Cable Gauge 12 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 12 AWG
Current 20A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Push-In Spring
Current Rating 24A
Insulation Height 1.535 39.00mm
HTS Code 8536.69.40.40
Voltage - Rated 500V
Color Gray
Number of Positions 2
Type Plug, Female Sockets
Connector Type Push-In
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series CLIPLINE COMBI PP-H
Published 2011
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 7 Weeks
