3062126
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

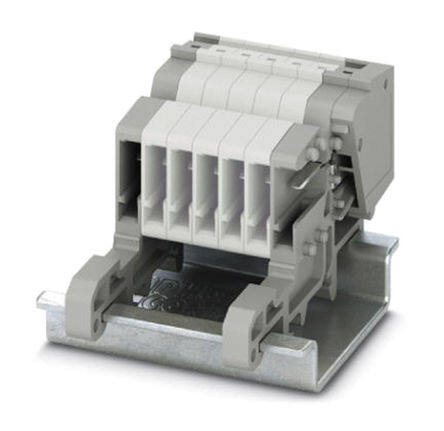

Coupling PPC 1,5/S-NS/3 (1GY/1BU/1GNYE) 3062126 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $3.77
Unit Price: USD $3.773436
≥1 USD $3.773436
≥10 USD $3.559844
≥100 USD $3.358347
≥500 USD $3.168252
≥1000 USD $2.988912
Inventory: 3638
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Width 10.5mm
Technical
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Wire Gauge or Range - AWG 14-26 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 26 AWG
Number of Levels 1
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 17.5A
Pitch 0.138 3.50mm
Voltage - Rated 500V
Color Blue, Gray, Green, Yellow
Number of Positions 3
Type Receptacle, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Rail Mount Foot
Series CLIPLINE COMBI PPC
Published 2015
Packaging Bulk
Physical
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 6 Weeks
