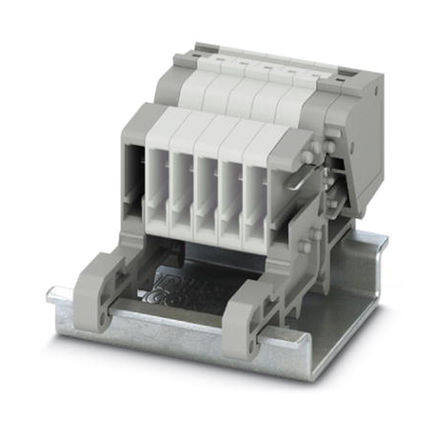

3061978 image
Favorite
3061978 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description CLIPLINE COMBI PPC RoHS Compliant 2015 Rail Mount Foot Terminal Block Receptacle, Female Sockets UL94V-0 26AWG 180° 17.5A
PDF
/
Buying Options
Total Price: USD $14.21
Unit Price: USD $14.211461
≥1 USD $14.211461
≥10 USD $13.407037
≥100 USD $12.648151
≥500 USD $11.932212
≥1000 USD $11.256812
Inventory: 1273
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

Width 56mm

Technical

Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Wire Gauge or Range - AWG 14-26 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 26 AWG
Number of Levels 1
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 17.5A
Pitch 0.138 3.50mm
Voltage - Rated 500V
Color Gray
Number of Positions 16
Type Receptacle, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Rail Mount Foot
Series CLIPLINE COMBI PPC
Published 2015
Packaging Bulk

Physical

Material Polyamide
Mounting Type DIN Rail
Mount DIN Rail

Supply Chain

Factory Lead Time 7 Weeks
