3061622
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

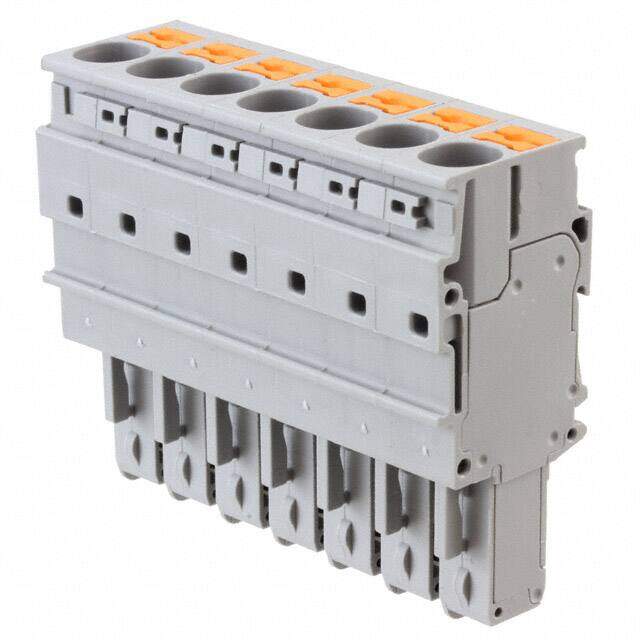

CLIPLINE COMBI PP-H RoHS Compliant 2013 Interlocking (Side) Terminal Block Plug, Female Sockets 20AWG 180° 40A 600V
PDF
/
Buying Options
Total Price: USD $49.11
Unit Price: USD $49.112963
≥1 USD $49.112963
≥200 USD $19.596345
≥500 USD $18.942521
≥1000 USD $18.618235
Inventory: 3109
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2013
Series CLIPLINE COMBI PP-H
Feature Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 7
Color Gray
Voltage - Rated 1kV
HTS Code 8536.69.40.40
Insulation Height 1.941 49.30mm
Current Rating 41A
Termination Style Screwless - Push-In Spring
Voltage 600V
Number of Levels 1
Current 40A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 8 AWG
Wire Gauge or Range - AWG 8-20 AWG
Voltage - IEC 1kV
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-10mm2
Wire Strip Length 12mm
Current - IEC 41A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
