3061619
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

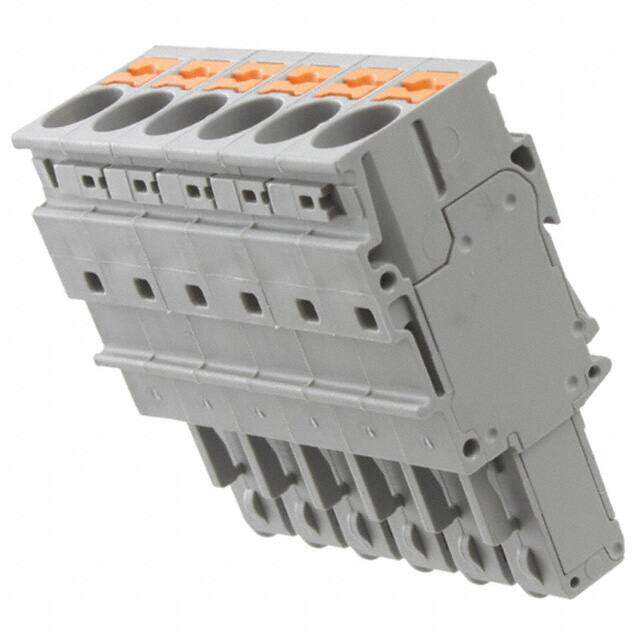

TERM BLOCK PLUG 6POS STR
PDF
/
Buying Options
Total Price: USD $42.68
Unit Price: USD $42.67844
≥1 USD $42.67844
≥200 USD $17.029626
≥500 USD $16.459827
≥1000 USD $16.178867
Inventory: 2286
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 45.334006g
Technical
Packaging Bulk
Published 2013
Series CLIPLINE COMBI PP-H
Feature Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Push-In
Type Plug, Female Sockets
Number of Positions 6
Color Gray
Voltage - Rated 1kV
Pitch 8.2mm
Insulation Height 1.941 49.30mm
Current Rating 41A
Termination Style Screwless - Push-In Spring
Voltage 600V
Number of Levels 1
Current 40A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 8 AWG
Wire Gauge or Range - AWG 8-20 AWG
Voltage - IEC 1kV
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-10mm2
Wire Strip Length 12mm
Current - IEC 41A
Dimensions
Height 49.3mm
Length 21mm
Width 49.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
