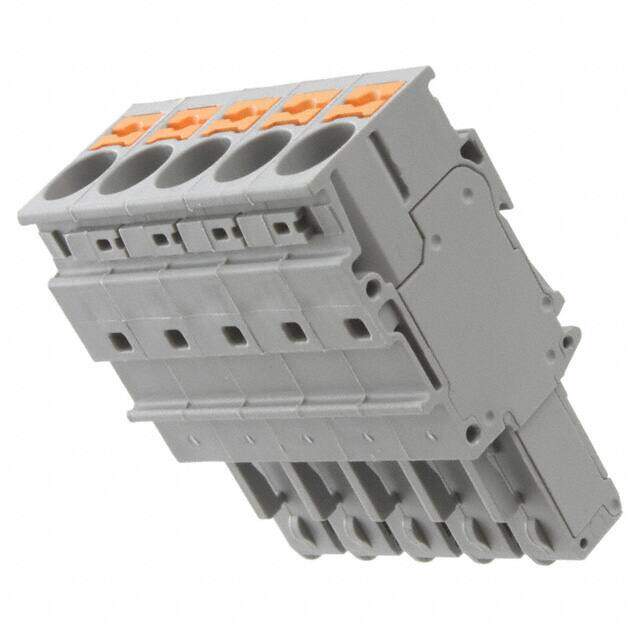

3061606
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 5POS STR
PDF
/
Buying Options
Total Price: USD $14
Unit Price: USD $14.001246
≥1 USD $14.001246
≥10 USD $13.208727
≥100 USD $12.461063
≥500 USD $11.75572
≥1000 USD $11.090301
Inventory: 9244
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 37.212009g
Technical
Packaging Bulk
Published 2013
Series CLIPLINE COMBI PP-H
Feature Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Push-In
Type Plug, Female Sockets
Number of Positions 5
Max Operating Temperature 130°C
Min Operating Temperature -60°C
Color Gray
Voltage - Rated 1kV
Pitch 8.2mm
Insulation Height 1.941 49.30mm
Current Rating 41A
Termination Style Screwless - Push-In Spring
Voltage 600V
Number of Levels 1
Current 40A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 8 AWG
Wire Gauge or Range - AWG 8-20 AWG
Voltage - IEC 1kV
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-10mm2
Wire Strip Length 12mm
Current - IEC 41A
Dimensions
Height 49.3mm
Length 21mm
Width 41mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
