3061583
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

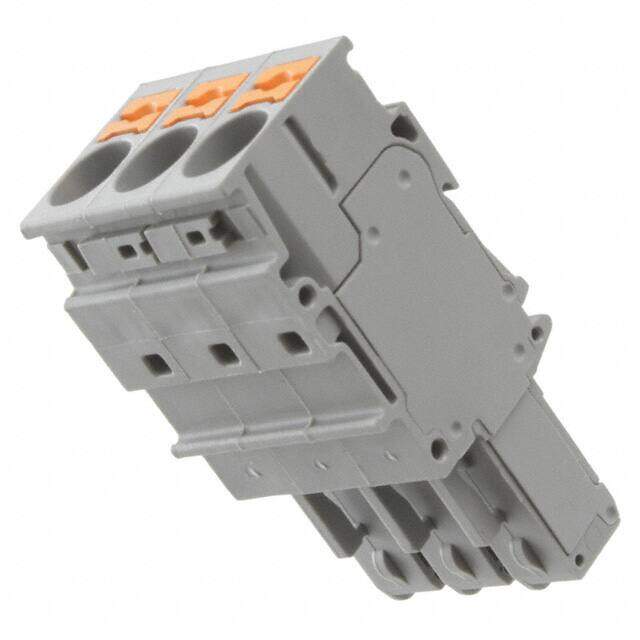

TERM BLOCK PLUG 3POS STR
PDF
/
Buying Options
Total Price: USD $6.71
Unit Price: USD $6.7056
≥1 USD $6.7056
Inventory: 65
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 24.6mm
Length 21mm
Height 49.3mm
Technical
Current - IEC 41A
Wire Strip Length 12mm
Wire Gauge or Range - mm2 0.5-10mm2
Plug Wire Entry 180°
Safety Approval CSA; CUL; UL
Number of Ways 3
Voltage - IEC 1kV
Wire Gauge or Range - AWG 8-20 AWG
Number of Decks 1
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 20 AWG
Current 40A
Number of Levels 1
Voltage 600V
Termination Style Screwless - Push-In Spring
Current Rating 41A
Reach Compliance Code unknown
Insulation Height 1.941 49.30mm
Pitch 8.2mm
Additional Feature PA, UL 94V-0
Voltage - Rated 1kV
Number of Rows 1
Color Gray
Number of Positions 3
Type Plug, Female Sockets
Connector Type Push-In
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Interlocking (Side)
Series CLIPLINE COMBI PP-H
Published 2013
Packaging Bulk
Physical
Weight 22.660001g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
