3060788
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

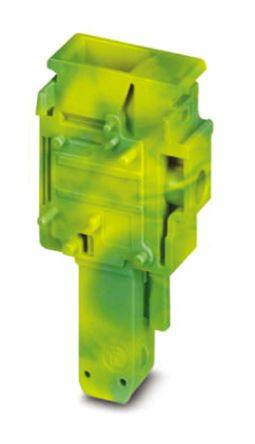

CLIPLINE COMBI UP RoHS Compliant 2015 Polyamide Terminal Block Plug, Female Sockets 24AWG 90° 40A 600V
PDF
/
Inventory: 1275
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide
Technical
Packaging Bulk
Published 2015
Series CLIPLINE COMBI UP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Color Green, Yellow
Voltage - Rated 1kV
Reach Compliance Code not_compliant
Current Rating 41A
Termination Style Screw
Voltage 600V
Number of Levels 1
Current 40A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 8 AWG
Wire Gauge or Range - AWG 8-24 AWG
Voltage - IEC 1kV
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.2-6mm2
Current - IEC 41A
Compliance
RoHS Status RoHS Compliant
