RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

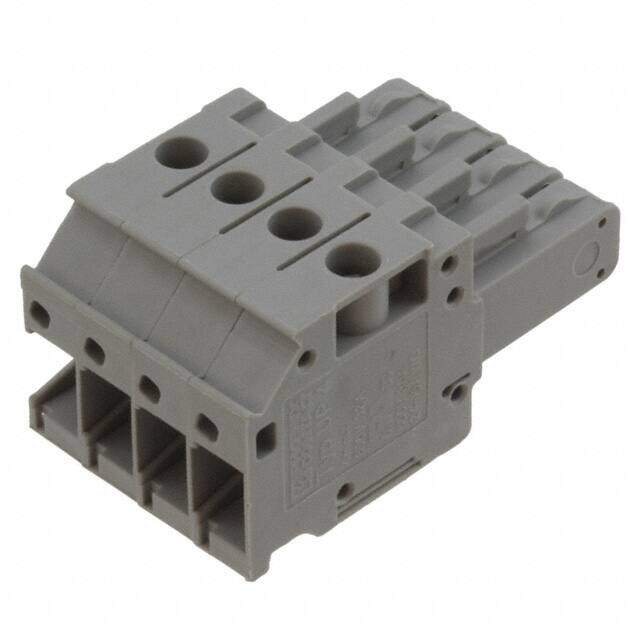

Description DIN Rail Terminal Blocks UP 4/ 4
PDF
/
Buying Options
Total Price: USD $7.92
Unit Price: USD $7.916832
≥1 USD $7.916832
≥10 USD $7.468711
≥100 USD $7.045954
≥500 USD $6.647132
≥1000 USD $6.270873
Inventory: 4464
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 24.8mm
Length 21mm

Technical

Screw Size M3
Current - IEC 32A
Wire Strip Length 9mm
Wire Gauge or Range - mm2 0.2-6mm2
Plug Wire Entry 180°
Torque - Screw 0.6-0.8 Nm (5.3-7.1 Lb-In)
Voltage - IEC 800V
Wire Gauge or Range - AWG 10-26 AWG
Wire/Cable Gauge 10 AWG
Wire Gauge (Min) 10 AWG
Wire Gauge (Max) 26 AWG
Current 30A
Number of Levels 1
Voltage 600V
Termination Style Screw
Current Rating 32A
Reach Compliance Code unknown
Insulation Height 1.622 41.20mm
Voltage - Rated 800V
Color Gray
Number of Positions 4
Type Plug, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series CLIPLINE COMBI UP
Published 2010
Packaging Bulk

Physical

Weight 19.74g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 11 Weeks
