3060050
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

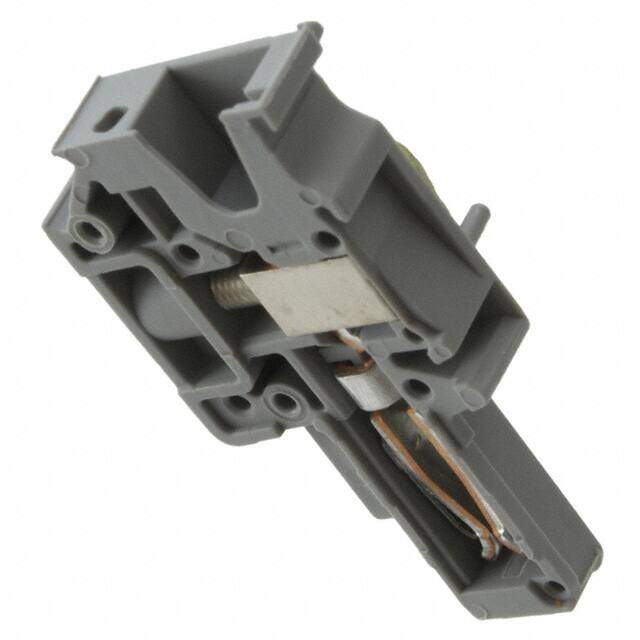

DIN Rail Terminal Blocks UP 4/1-M
PDF
/
Buying Options
Total Price: USD $2.28
Unit Price: USD $2.276876
≥1 USD $2.276876
≥10 USD $2.147995
≥100 USD $2.026408
≥500 USD $1.911704
≥1000 USD $1.803502
Inventory: 3737
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 5.259999g
Technical
Packaging Bulk
Published 2007
Series CLIPLINE COMBI UP
Feature Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Color Gray
Voltage - Rated 800V
HTS Code 8536.69.40.40
Pitch 6.2mm
Depth 18.3mm
Insulation Height 1.622 41.20mm
Reach Compliance Code not_compliant
Current Rating 32A
Termination Style Screw
Approval Agency cULus
Voltage 600V
Number of Levels 1
Current 30A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 24 AWG
Wire/Cable Gauge 10 AWG
Wire Gauge or Range - AWG 10-26 AWG
Voltage - IEC 800V
Torque - Screw 0.6-0.8 Nm (5.3-7.1 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-6mm2
Wire Strip Length 9mm
Current - IEC 32A
Screw Size M3
Dimensions
Height 24.8mm
Length 21mm
Width 6.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
