3051179
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

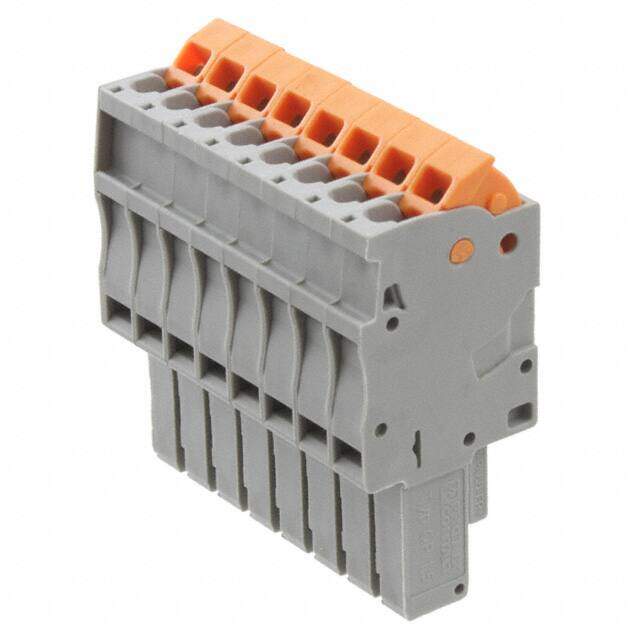

DIN Rail Terminal Blocks QP 1.5/ 8
PDF
/
Buying Options
Total Price: USD $11.09
Unit Price: USD $11.088222
≥1 USD $11.088222
≥10 USD $10.460586
≥100 USD $9.868476
≥500 USD $9.309885
≥1000 USD $8.782914
Inventory: 6623
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 524.806372g
Technical
Packaging Bulk
Published 2011
Series CLIPLINE COMBI QP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type IDC, IDT
Type Plug, Female Sockets
Number of Positions 8
Color Gray
Number of Rows 1
Voltage - Rated 500V
Additional Feature PA, UL 94V-0
Insulation Height 1.575 40.00mm
Current Rating 17.5A
Termination Style IDC
Voltage 600V
Number of Levels 1
Current 5A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 500V
Number of Ways 8
Safety Approval CSA; CUL; GL; GOST; UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.25-1.5mm2
Current - IEC 17.5A
Dimensions
Length 20mm
Width 41.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
