3051124
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

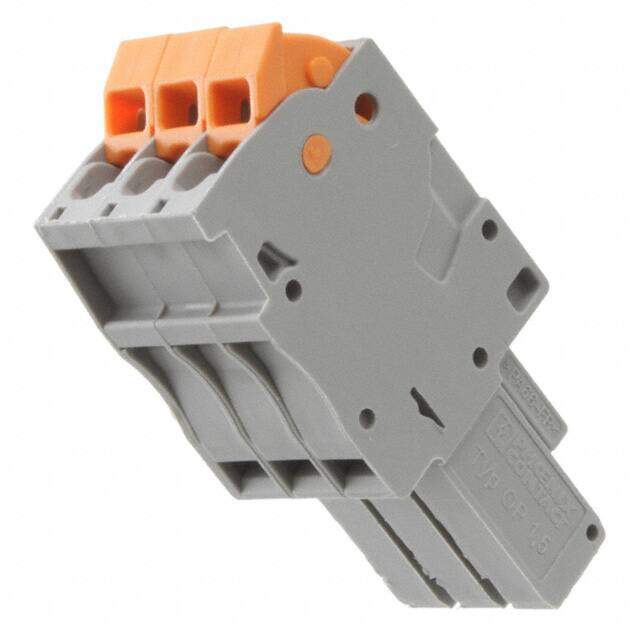

DIN Rail Terminal Blocks QP 1.5/ 3
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 15.6mm
Length 20mm
Height 40mm
Technical
Current - IEC 17.5A
Wire Gauge or Range - mm2 0.25-1.5mm2
Plug Wire Entry 180°
Safety Approval CSA; CUL; GL; GOST; UL
Number of Ways 3
Voltage - IEC 500V
Wire Gauge or Range - AWG 16-24 AWG
Number of Decks 1
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Current 5A
Number of Levels 1
Voltage 600V
Approval Agency CSA, UL
Termination Style IDC
Current Rating 17.5A
Insulation Height 1.575 40.00mm
Additional Feature PA, UL 94V-0
Voltage - Rated 500V
Number of Rows 1
Color Gray
Number of Positions 3
Type Plug, Female Sockets
Connector Type IDC, IDT
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series CLIPLINE COMBI QP
Published 2012
Packaging Bulk
Physical
Weight 1.000171kg
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
