3051111
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

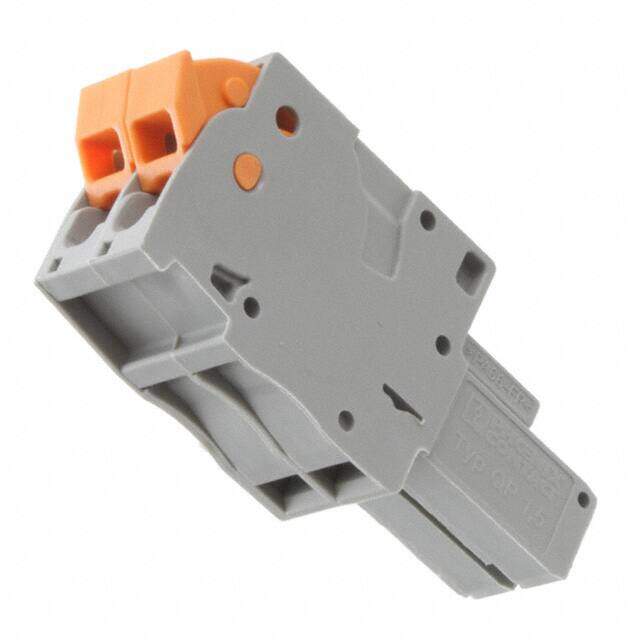

DIN Rail Terminal Blocks QP 1.5/ 2
PDF
/
Buying Options
Total Price: USD $739.17
Unit Price: USD $739.169137
≥1 USD $739.169137
≥10 USD $697.32938
≥100 USD $657.8579
≥500 USD $620.620661
≥1000 USD $585.491189
Inventory: 6035
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 10.4mm
Length 20mm
Height 40mm
Technical
Wire Gauge or Range - mm2 0.25-1.5mm2
Plug Wire Entry 180°
Safety Approval CSA; CUL; GL; GOST; UL
Number of Ways 2
Voltage - IEC 500V
Wire Gauge or Range - AWG 16-24 AWG
Number of Decks 1
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Current 5A
Number of Levels 1
Max Current Rating 17.5A
Max Supply Voltage 500V
Voltage 600V
Approval Agency CSA, UL
Termination Style IDC
Current Rating 17.5A
Reach Compliance Code unknown
Insulation Height 1.575 40.00mm
Depth 10.4mm
Orientation Straight
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-0
Voltage - Rated 500V
Number of Rows 1
Color Gray
Number of Positions 2
Type Plug, Female Sockets
Connector Type IDC, IDT
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series CLIPLINE COMBI QP
Published 2010
Packaging Bulk
Physical
Weight 1.099961kg
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
