3051014
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

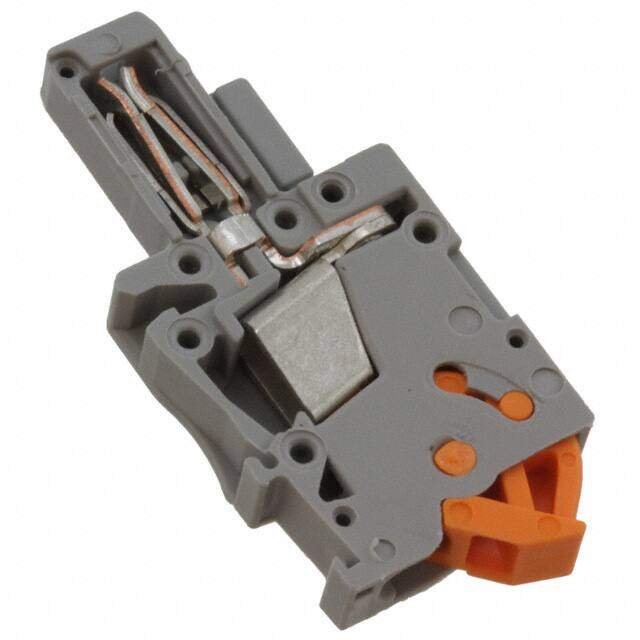

DIN Rail Terminal Blocks QP 1.5/1-L
PDF
/
Buying Options
Total Price: USD $2.03
Unit Price: USD $2.0328
≥1 USD $2.0328
≥10 USD $1.97472
≥100 USD $1.84536
≥500 USD $1.697696
≥1000 USD $1.568547
≥3000 USD $1.49475
Inventory: 92
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 4.033995g
Technical
Packaging Bulk
Published 2007
Fastening Method SCREW
Wire Gauge or Range - mm2 0.25-1.5mm2
Plug Wire Entry 180°
Safety Approval VDE
Voltage - IEC 500V
Current - UL 5A
Wire Gauge or Range - AWG 16-24 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 24 AWG
Current 10A
Number of Levels 1
Voltage 600V
Approval Agency CSA, UL
Termination Style IDC
Current Rating 17.5A
Reach Compliance Code unknown
Insulation Height 1.575 40.00mm
Depth 13mm
Pitch 5.2mm
HTS Code 8536.69.40.40
Voltage - Rated 500V
Number of Rows 1
Color Gray
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Type Plug, Female Sockets
Connector Type IDC, IDT
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Interlocking (Side)
Series CLIPLINE COMBI QP
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 5.2mm
Length 20mm
Height 24mm
