RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

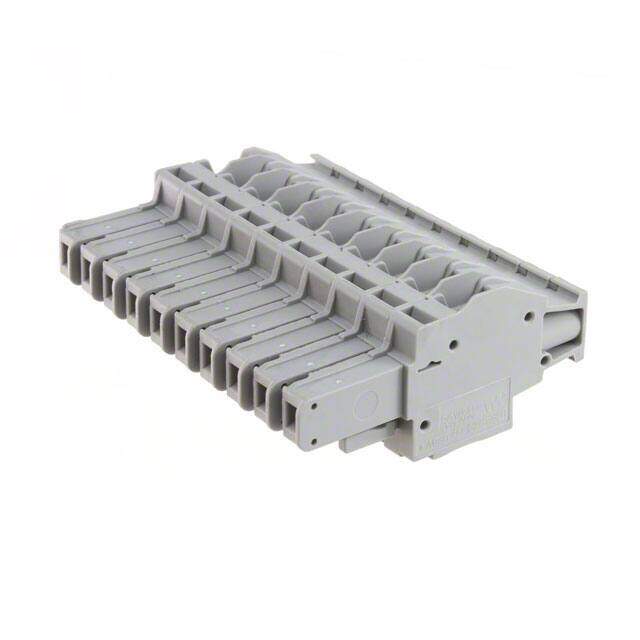

Description DIN Rail Terminal Blocks UPBV 4/10
PDF
/
Buying Options
Total Price: USD $41.31
Unit Price: USD $41.307773
≥1 USD $41.307773
≥200 USD $16.482147
≥500 USD $15.932042
≥1000 USD $15.658958
Inventory: 3749
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 62mm
Length 21mm
Height 48.5mm

Technical

Screw Size M3
Current - IEC 32A
Wire Strip Length 9mm
Wire Gauge or Range - mm2 0.14-6mm2
Plug Wire Entry 90°
Torque - Screw 0.6-0.8 Nm (5.3-7.1 Lb-In)
Voltage - IEC 800V
Wire Gauge or Range - AWG 10-26 AWG
Wire Gauge (Min) 10 AWG
Wire Gauge (Max) 26 AWG
Current 30A
Number of Levels 1
Voltage 600V
Termination Style Screw
Current Rating 32A
Reach Compliance Code not_compliant
Insulation Height 1.909 48.50mm
HTS Code 8536.69.40.40
Voltage - Rated 800V
Color Gray
Number of Positions 10
Type Plug, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series CLIPLINE COMBI UPBV
Published 2011
Packaging Bulk

Physical

Weight 61.50001g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 4 Weeks
