3045855
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

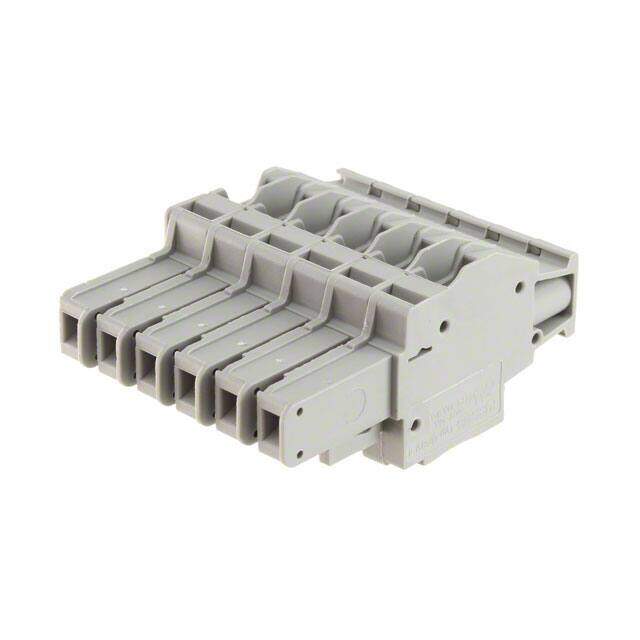

DIN Rail Terminal Blocks UPBV 4/6
PDF
/
Inventory: 9862
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 37.2mm
Length 21mm
Technical
Screw Size M3
Current - IEC 32A
Wire Strip Length 9mm
Wire Gauge or Range - mm2 0.14-6mm2
Plug Wire Entry 90°
Torque - Screw 0.6-0.8 Nm (5.3-7.1 Lb-In)
Voltage - IEC 800V
Wire Gauge or Range - AWG 10-26 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 26 AWG
Current 30A
Number of Levels 1
Voltage 600V
Termination Style Screw
Current Rating 32A
Insulation Height 1.909 48.50mm
Voltage - Rated 800V
Color Gray
Number of Positions 6
Type Plug, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series CLIPLINE COMBI UPBV
Published 2010
Packaging Bulk
Physical
Weight 36.969989g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
