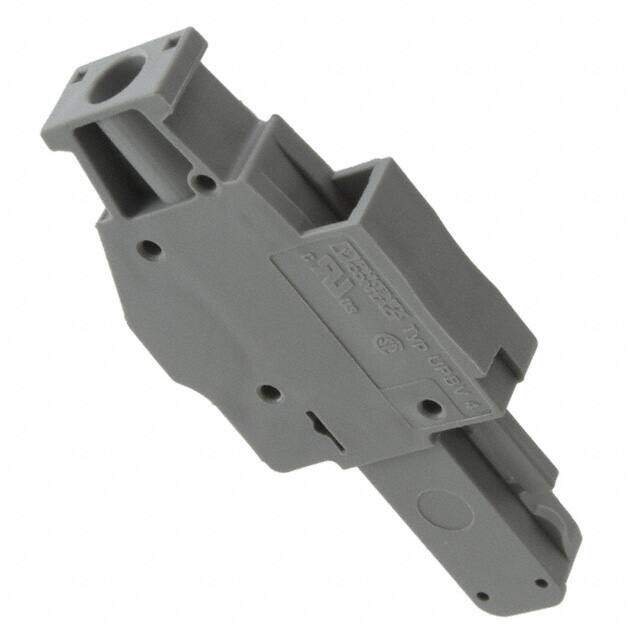

3045774
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
DIN Rail Terminal Blocks UPBV 4/1-R
PDF
/
Buying Options
Total Price: USD $1.67
Unit Price: USD $1.672
≥1 USD $1.672
Inventory: 65
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 6.840003g
Technical
Packaging Bulk
Published 2011
Series CLIPLINE COMBI UPBV
Feature Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Color Gray
Voltage - Rated 800V
HTS Code 8536.69.40.40
Pitch 6.2mm
Insulation Height 1.909 48.50mm
Reach Compliance Code not_compliant
Current Rating 32A
Termination Style Screw
Approval Agency CSA, UL
Voltage 600V
Number of Levels 1
Current 30A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 10 AWG
Wire Gauge or Range - AWG 10-26 AWG
Voltage - IEC 800V
Torque - Screw 0.6-0.8 Nm (5.3-7.1 Lb-In)
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.14-6mm2
Wire Strip Length 9mm
Current - IEC 32A
Screw Size M3
Dimensions
Height 32.2mm
Length 21mm
Width 6.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
