3045431
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

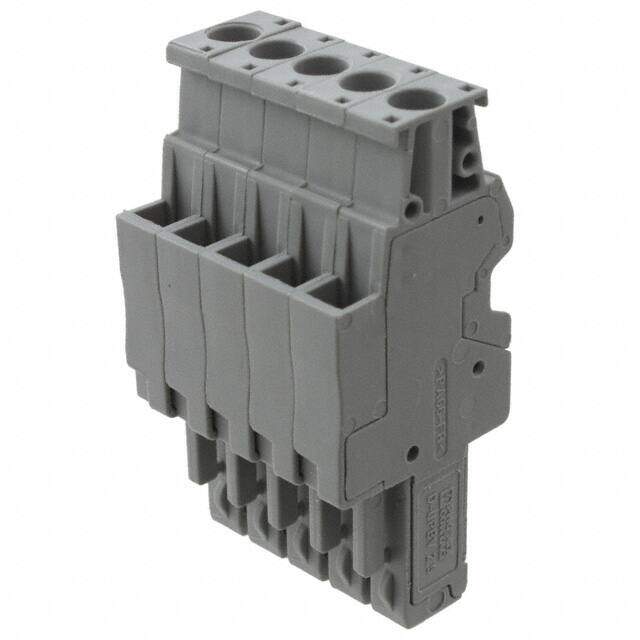

DIN Rail Terminal Blocks UPBV 2.5/ 5
PDF
/
Buying Options
Total Price: USD $3.77
Unit Price: USD $3.7664
≥1 USD $3.7664
Inventory: 123
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 26mm
Length 21mm
Technical
Screw Size M3
Current - IEC 24A
Wire Strip Length 9mm
Wire Gauge or Range - mm2 0.14-4mm2
Plug Wire Entry 90°
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 500V
Wire Gauge or Range - AWG 12-26 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 20A
Number of Levels 1
Voltage 600V
Termination Style Screw
Current Rating 24A
Insulation Height 1.850 47.00mm
Voltage - Rated 500V
Color Gray
Number of Positions 5
Type Plug, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series CLIPLINE COMBI UPBV
Published 2011
Packaging Bulk
Physical
Weight 400.000006g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
