3045402
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

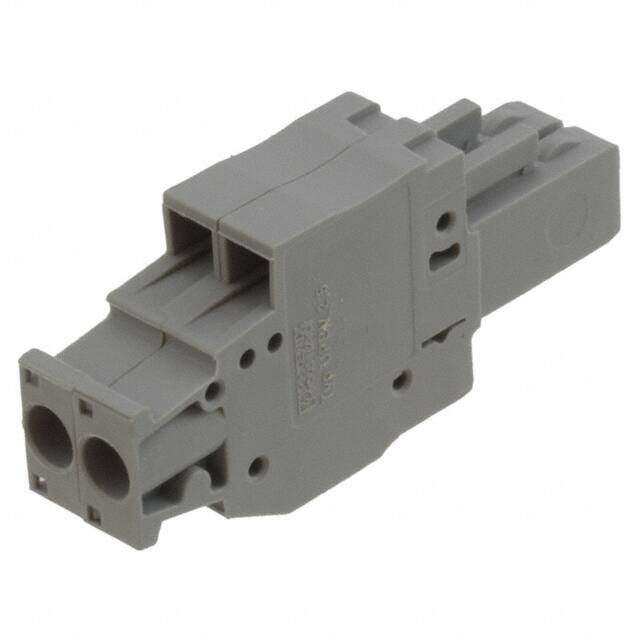

DIN Rail Terminal Blocks UT-COMBI MALE CONN UPBV 2.5/2
PDF
/
Buying Options
Total Price: USD $2.5
Unit Price: USD $2.499799
≥1 USD $2.499799
≥10 USD $2.358304
≥100 USD $2.224813
≥500 USD $2.098879
≥1000 USD $1.980076
Inventory: 1195
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 1.200205kg
Technical
Packaging Bulk
Published 2011
Series CLIPLINE COMBI UPBV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 2
Color Gray
Number of Rows 2
Voltage - Rated 500V
HTS Code 8536.69.40.40
Insulation Height 1.850 47.00mm
Reach Compliance Code not_compliant
Current Rating 24A
Termination Style Screw
Approval Agency cULus
Voltage 600V
Number of Levels 1
Current 20A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 12 AWG
Number of Decks 2
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 500V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 6
Safety Approval UL
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.14-4mm2
Wire Strip Length 9mm
Current - IEC 24A
Screw Size M3
Dimensions
Length 21mm
Width 10.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
