RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

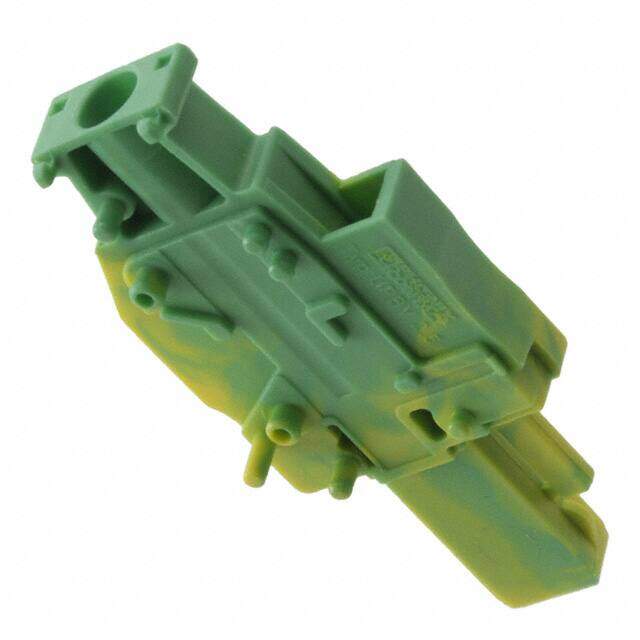

Description DIN Rail Terminal Blocks UPBV 2.5/ 1-R GNYE
PDF
/
Buying Options
Total Price: USD $1.29
Unit Price: USD $1.287644
≥1 USD $1.287644
≥10 USD $1.214761
≥100 USD $1.145998
≥500 USD $1.081129
≥1000 USD $1.019931
Inventory: 921
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 5.2mm
Length 21mm

Technical

Screw Size M3
Wire Strip Length 9mm
Wire Gauge or Range - mm2 0.14-4mm2
Plug Wire Entry 90°
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 500V
Wire Gauge or Range - AWG 12-26 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 26 AWG
Current 20A
Number of Levels 1
Max Current Rating 24A
Voltage 600V
Termination Style Screw
Current Rating 24A
Reach Compliance Code not_compliant
Insulation Height 1.850 47.00mm
Orientation Straight
Voltage - Rated 500V
Color Green, Yellow
Type Plug, Female Sockets
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Interlocking (Side)
Series CLIPLINE COMBI UPBV
Published 2017
Packaging Bulk

Physical

Weight 2.100133kg
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging

Supply Chain

Factory Lead Time 4 Weeks
